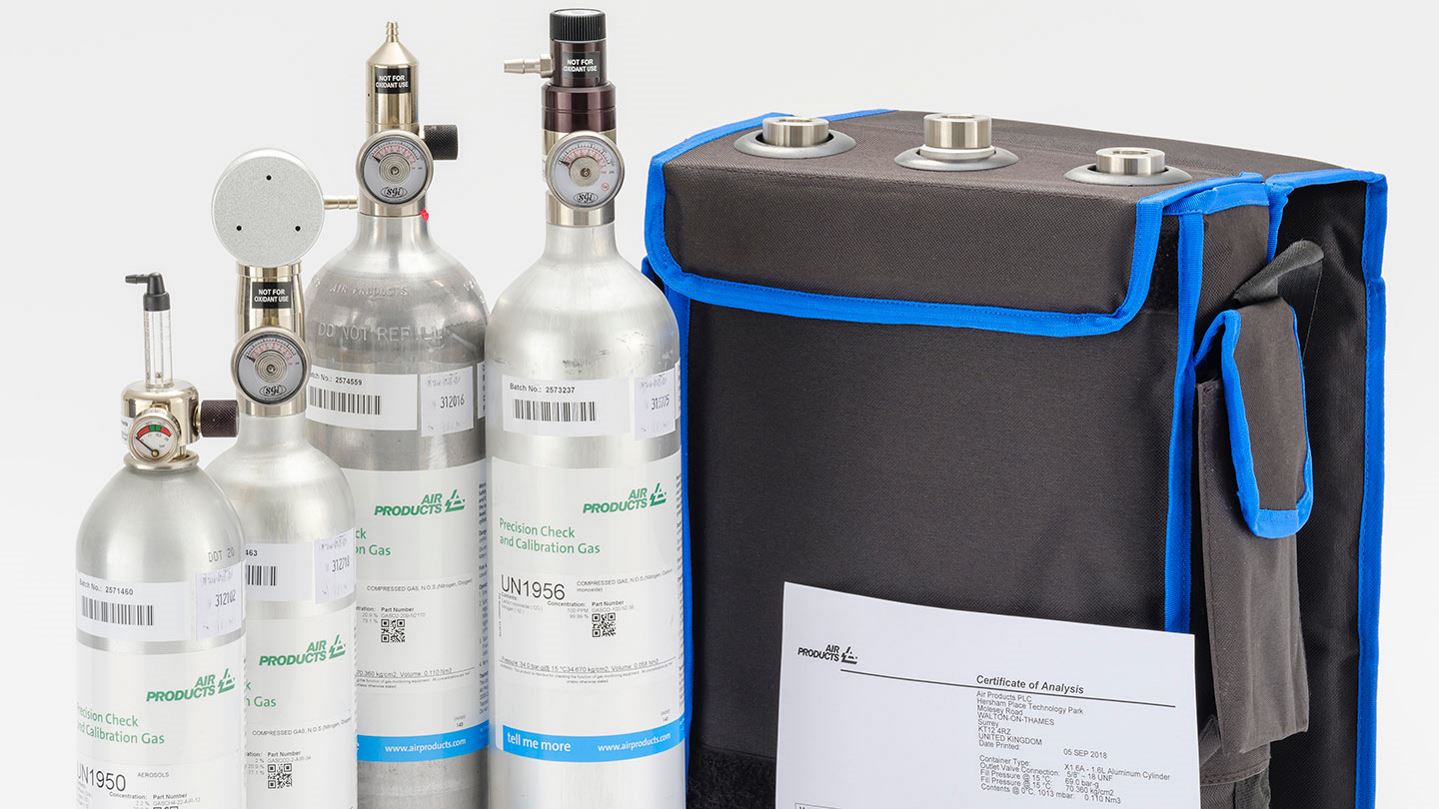

Canister family, recycler, carry bag

Non-Refillable Canisters and Associated Accessories

Air Products has developed a complete range of equipment and accessories to complement is comprehensive canister range.

By working closely with its customer base, Air Products understands the critical importance of equipment which can be used to dispense gas mixtures from its canister and aerosol range.

These are available in many options and variants ensuring suitability for almost any application and flow rate.

To complement these regulators there is a full suite of accessories, including carry cases, wall mounted holders and a canister recycling tool.

ap0029-specialty-gases
Suitability for all types of gas mixtures

Brass, brass plated and stainless steel regulators

0754-scale
Flow rates

Fixed and variable flow rate options

0884-ruler
Availability

Comprehensive stockholding, ensures fast delivery

0899-key
Compatibility

Suitable for competitor valves with C10 connection (canisters) or Lindal

ap0031-cylinder-storage
Assisting the safe disposal of canisters

Low torque and fixed position recycling tools enable easy disposal of canisters and aerosols

ap0053-move-cylinders
Safe storage and transportation

Range of carry cases ensure canisters can be simply and easily transported

Canister Equipment Selector Tool

Canister Equipment Selector Tool

recommended equipment

Mini-Flow-EQ-198485-419515

Mini-Flow Valve

A plated brass control valve with a flow meter and a barbed outlet that accommodates a length of polyurethane tubing. This unit allows the user to control the flow of gas by adjusting a knurled knob on top ofthe valve.

0.5 - 1.5 lpm (AP Product Number-198485)
1.5 - 2.5 lpm (AP Product Number-419515)

S Flow EQ 198252

S-Flow Valve

Offers more precise setting of adjustable flow rates than the Mini-flow valve. It features an integral flow adjustment valve and a clearly marked graduated flow meter for ease of use, and a pressure gauge indicating canister contents.

0 - 1.0 lpm (AP Product Number-198252)

Pump Flow Balanced Flow Valve

A plated brass valve for instruments fitted with pumps. Adjusting the control knob so the ball in the flow meter is airborne simulates normal operating conditions of the pump. An excess of gas vents to atmosphere, while the major part of the gas flow will satisfy the pumps requirements.

(AP Product Number-198487)

Brass-Control-Valve-EQ-199382

Brass Control Valve with Barbed Outlet

A brass control valve with a barbed outlet which accomodates a short length of polyurethane tubing. This economical unit allows the user to control the flow of gas by adjusting a knurled knob on top of the valve. An alternative version with a threaded outlet (dimension 5M) is also available.

(AP Product Number-199382)

recommended equipment

Contact Us

Include phone number here per country?

recommended equipment

Contact Us

Put country-based phone number here?

recommended Equipment

Fixed-Flow-EQ-198325-411324-198324-404298-198840-186414-198842-198841-198322-198481-427501-451665-198483-197943-197941-197942-418248-411325-198482

Plated Brass Fixed Flow Regulator

These units are preset to deliver gas at a fixed flow rate. Standard flow rates include 0.3, 0.5, 1.0, 1.5, 2.0, and 2.5 lpm. Other fixed flow rates are also available. Ideal for non-corrosive gases. The pressure gauge shows the canister contents and a short length of polyurethane tubing is supplied.

0.05 lpm (AP Product Number-198325)
0.1 lpm (AP Product Number-198324)
0.15 lpm (AP Product Number-411324)
0.2 lpm (AP Product Number-404298)
0.3 lpm (AP Product Number-198840)
0.5 lpm (AP Product Number-186414)
1.0 lpm (AP Product Number-198842)
1.5 lpm (AP Product Number-198841)
2.0 lpm (AP Product Number-198322)
2.5 lpm (AP Product Number-198481)
5.0 lpm (AP Product Number-427501)

Trigger EQ

Plated Brass Trigger Regulator

These units are preset to deliver gas at a flowrate of 0.5, 1.0 or 6.0 lpm or unrestricted. Pressing the trigger activates the regulator and dispenses gas. It can be locked in the “on” position to achieve continuous gas flow. The pressure gauge shows the contents. Features a 4mm OD straight connection.

0.5 lpm (AP Product Number-198250)
1.0 lpm (AP Product Number-198251)
6.0 lpm (AP Product Number-435093)
~20 lpm (AP Product Number-454149) with unrestricted flow

Duo-Flow-EQ-198793-198794

Duo-Flow Regulator

This Duo-Flow regulator features a push button to give an aerosol style squirt of gas, and an on/off control for continuous fixed flow rate delivery. The pressure gauge shows the canister contents. A “breath alcohol” adaptor is supplied.

0.5 lpm (AP Product Number-198793)
1.0 lpm (AP Product Number-198794)

Push Button EQ 198326

Push Button Regulator, Plated Brass

This simple unit features a push button to give an aerosol style squirt of gas at 0.5 lpm from the large canisters. The pressure gauge shows the canister contents. A “breath alcohol” adaptor is supplied.

0.5 lpm (AP Product Number-198326)

recommended equipment

Fixed-Flow-EQ-198325-411324-198324-404298-198840-186414-198842-198841-198322-198481-427501-451665-198483-197943-197941-197942-418248-411325-198482

Stainless Steel Fixed Flow Regulator

These units are preset to deliver gas at a fixed flow rate. Stainless steel fixed flow regulators are recommended for use with highly corrosive gas mixtures like Cl2 and HCl. The pressure gauge shows the canister contents. A short length of polyurethane tubing is supplied.

0.1 lpm (AP Product Number-451665)
0.3 lpm (AP Product Number-198483)
0.5 lpm (AP Product Number-197943)
1.0 lpm (AP Product Number-197941)
1.5 lpm (AP Product Number-197942)
2.0 lpm (AP Product Number-418248)
2.5 lpm (AP Product Number- 411325)
3.0 lpm (AP Product Number-198482)

recommended equipment

Mini Flow EQ 199384-199383

Mini-Flow Valve

A plated brass control valve with a flow meter and a barbed outlet that accommodates a length of polyurethane tubing. This unit allows the user to control the flow of gas by adjusting a knurled knob on top of the valve.

0.5 - 1.5 lpm (AP Product Number-199384)
1.5 - 2.5 lpm (AP Product Number-199383)

S Flow EQ 198253

S-Flow Valve

Offers more precise setting of adjustable flow rates than the Mini-flow valve. It features an integral flow adjustment valve and a clearly marked graduated flow meter for ease of use, and a pressure gauge indicating canister contents.

0 - 1 lpm (AP Product Number-198253)

Demand-Flow-EQ-404715-198329-402214

Plated Brass Demand-Flow Regulator

Designed for instruments fitted with a pump. The regulator flow matches that demanded by the instrument. It negates separate accessories such as T-pieces and sampling bags, and avoids wasted gas. The pressure gauge shows the canister contents.

0 - 3 lpm (AP Product Number-404715)
0 - 5 lpm (AP Product Number-198329)

Dial-a-Flow-EQ-431834-431835-450162-431836-431837

Brass Dial-a-Flow Regulator

An easy to use, plated brass, lightweight regulator, giving enhanced functionality over the traditional fixed flow unit. It offers 9 pre-setflow rates in a single compact design. The pressure gauge shows shows the canister contents 0 – 3.0 lpm, and 0 – 5.0 lpm versions are available.

0 - 3 lpm (AP Product Number-431834)
0 - 5 lpm (AP Product Number-431835)
0 - 8 lpm (AP Product Number-450162)

recommended equipment

Dial-a-Flow-EQ-431834-431835-450162-431836-431837

Stainless Steel Dial-a-Flow Regulator

An easy to use, lightweight regulator, giving enhanced functionality over the traditional fixed flow unit. It offers 9 pre-set flow rates in a single compact design. The pressure gauge shows the canister contents. Recommended for use with corrosive gases.
 0 - 3 lpm (AP Product Number-431836)
 0 - 5 lpm (AP Product Number-431937)

Demand-Flow-EQ-404715-198329-402214

Stainless Steel Demand-Flow Regulator

Designed for instruments fitted with a pump. The regulator flow matches that demanded by the instrument. It negates separate accessories such as T-pieces and sampling bags, and avoids wasted gas. The pressure gauge shows the canister contents. Recommended for use with corrosive gases.

  0 - 5 lpm (AP Product Number-402214)

recommended equipment

Pressure Reg EQ 432820-422334-451814-402220-453356

Pressure Regulator, Plated Brass, Two Stage Performance

Suitable for when the precise control of the outlet pressure is required. The incorporated Exact® technology delivers two stage performance, within the footprint of a single stage unit. It is ideally suited to the 58L and 110L canisters. A stainless steel version of this regulator is also available for corrosive gas mixtures.

0 - 1.5 Bar (AP Product Number-432820)
0 - 4 Bar (AP Product Number-422334)
0 - 10 Bar (AP Product Number-451814)

recommended equipment

Pressure Reg EQ 432820-422334-451814-402220-453356

Pressure Regulator, Stainless Steel, Two Stage Performance

Suitable for when the precise control of the outlet pressure is required. The incorporated Exact® technology delivers two stage performance, within the footprint of a single stage unit. It is ideally suited to the 58L and 110L canisters. A stainless steel version of this regulator is also available for corrosive gas mixtures.

0 - 1.5 Bar (AP Product Number-402220)
0 - 4 Bar (AP Product Number-453356)

Ask the Expert

How do customers dispose of empty canisters?

The customer can buy a canister recycling tool which depressurises the empty canister so it cannot be reused. This can then be disposed of as a non-hazardous material in the normal waste or by recycling.
